Java系列-整合swagger-bootstrap-ui文档

2025年9月13日大约 2 分钟

Java系列-整合swagger-bootstrap-ui文档

准备工作

正式开始

POM

<!-- swagger-ui -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.9.2</version>
</dependency>

<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>swagger-bootstrap-ui</artifactId>
    <version>1.9.6</version>
</dependency>

配置基类

Swagger2Configuration.java

package com.xxx.oa.framework.config;

import com.github.xiaoymin.swaggerbootstrapui.annotations.EnableSwaggerBootstrapUI;
import io.swagger.annotations.ApiOperation;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Profile;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

/**
 *
 * <p> Description: Swagger2 生产环境禁用
 *
 * @author him
 * @version 1.0.0
 * @since 2020-11-13 10:41:21
 */
@Profile("dev")
@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUI
public class Swagger2Configuration {
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .paths(PathSelectors.any())
                .build();
    }

    /** API备注信息 */
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("xxx-oa接口文档")
                .description("更多请咨询服务开发商")
                .contact(new Contact("yunkuerp", "https://www.yunkuerp.cn", "xxx@sun-usb.com"))
                .version("1.0.0")
                .build();
    }

}

使用教程

额外增加注解： @ApiOperationSupport(order = 1)：作用在方法上的排序；@ApiSort(1)：作用在类上的排序

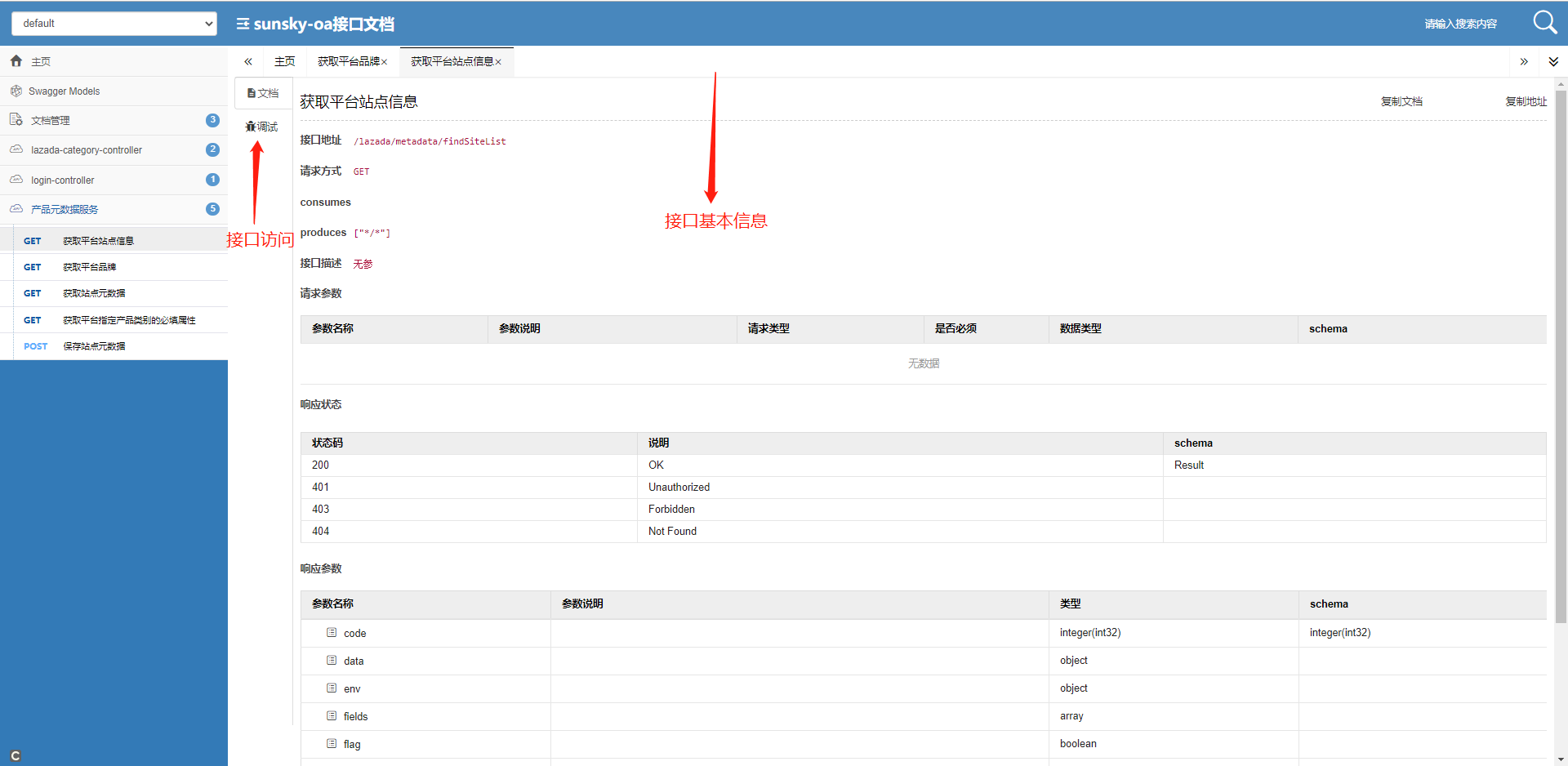

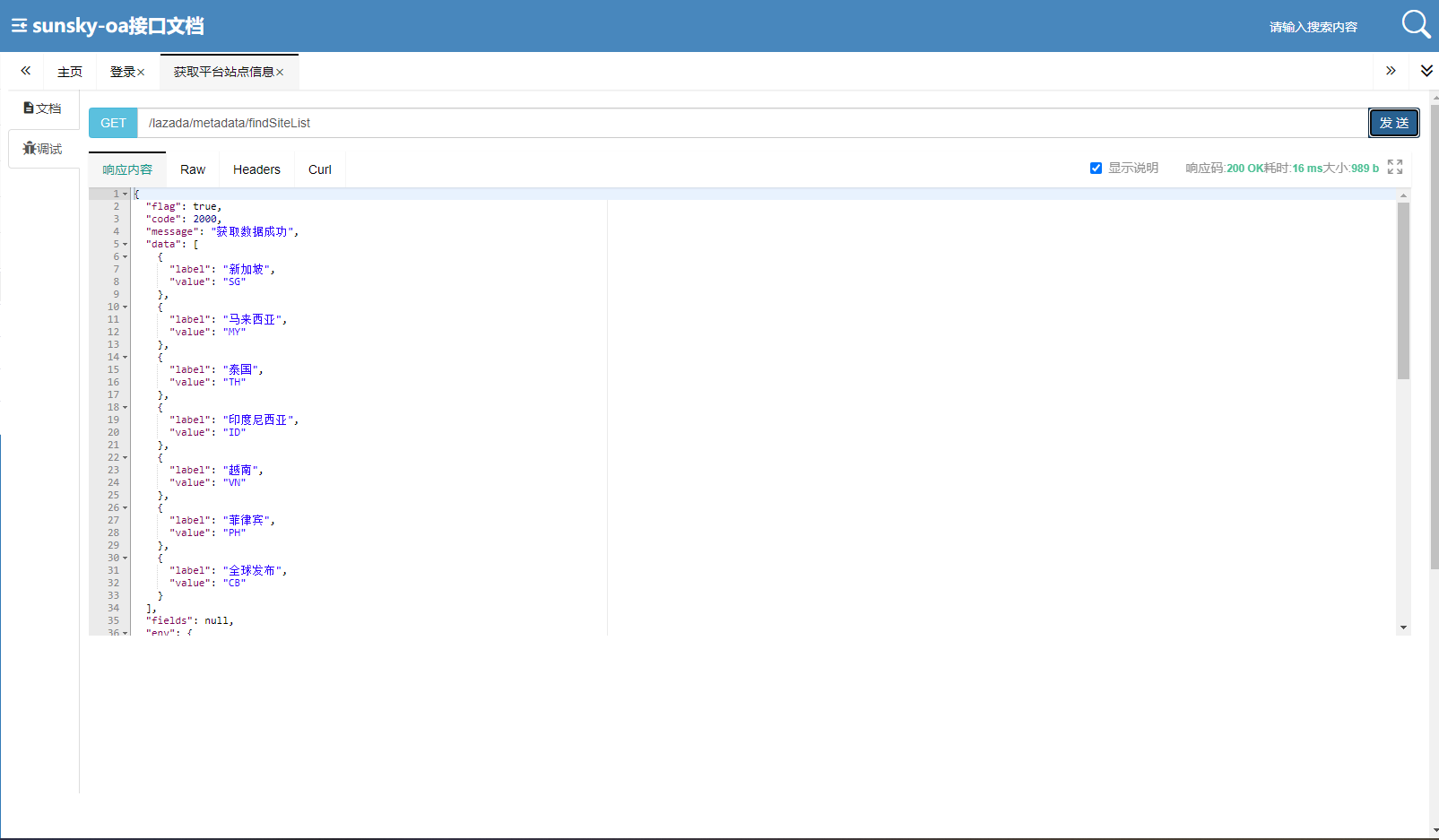

文档访问

在线文档地址: http://ip:port/doc.html

额外补充

Swagger2 中添加 JWT

在Swagger2中我们声明DocketBean时利用全局参数注入一个Authorization请求头:

package com.xxx.oa.framework.config;

import com.github.xiaoymin.swaggerbootstrapui.annotations.EnableSwaggerBootstrapUI;
import io.swagger.annotations.ApiOperation;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Profile;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.service.Parameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.List;

/**
 *
 * <p> Description: Swagger2 生产环境禁用
 *
 * @author him
 * @version 1.0.0
 * @since 2020-11-13 10:41:21
 */
@Profile("dev")
@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUI
public class Swagger2Configuration {
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .globalOperationParameters(jwtToken())
                .select()
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("xxx-oa接口文档")
                .description("更多请咨询服务开发商")
                .contact(new Contact("yunkuerp", "https://www.yunkuerp.cn", "xxx@sun-usb.com"))
                .version("1.0.0")
                .build();
    }

    private List<Parameter> jwtToken() {
        String jwt = "Bearer {jwt}";
        ParameterBuilder tokenPar = new ParameterBuilder();
        List<Parameter> pars = new ArrayList<>();
        // 声明 key
        tokenPar.name("Authorization")
                // 文字说明
                .description("jwt令牌")
                // 类型为字符串
                .modelRef(new ModelRef("string"))
                // 参数形式为 header 参数
                .parameterType("header")
                // 默认值
                .defaultValue(jwt)
                // 是否必须
                .required(false);
        pars.add(tokenPar.build());
        return pars;
    }

}

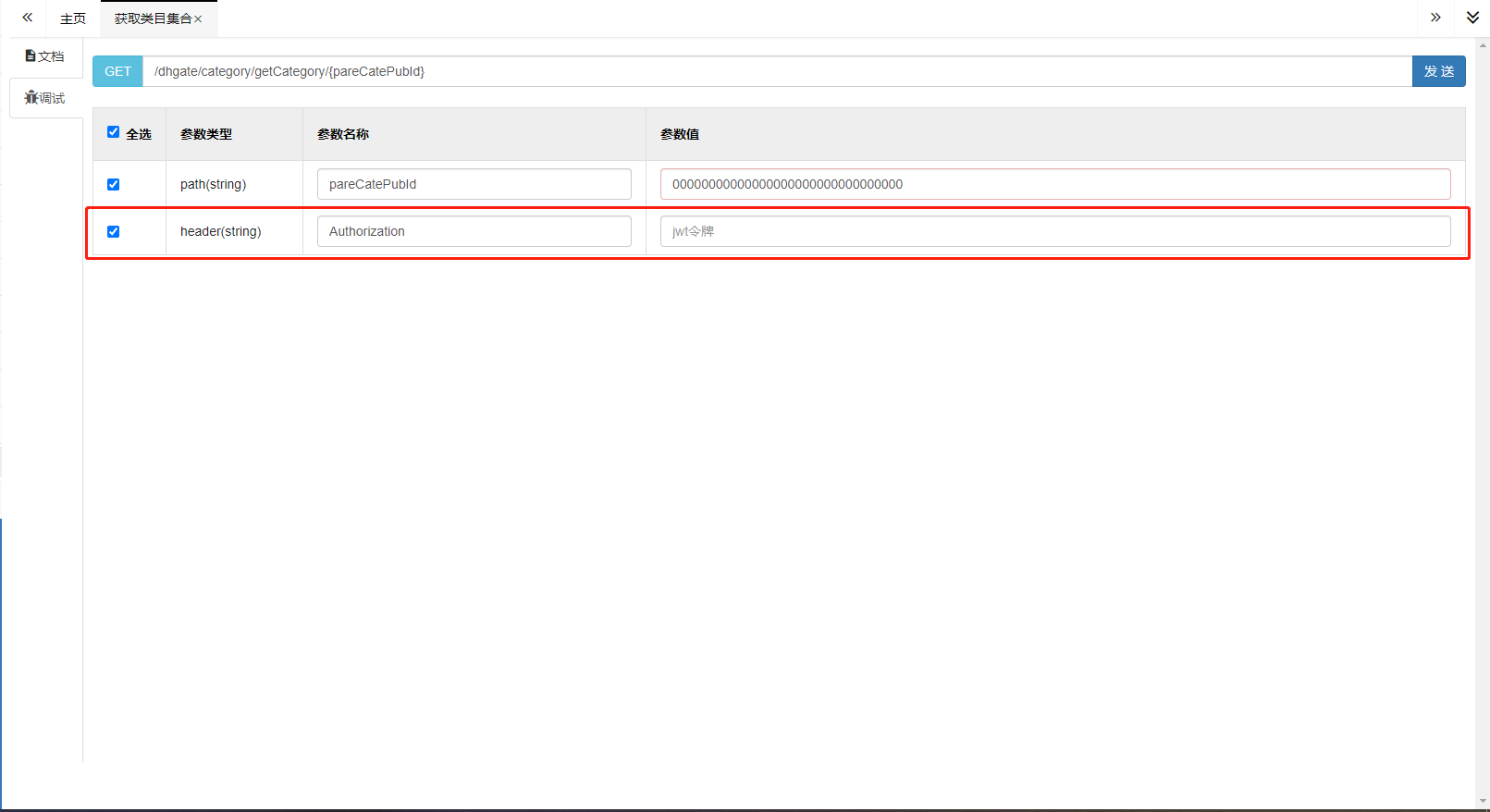

效果如下，只需要填充一个可用的Jwt Token即可。

Swagger3 中添加 JWT

Swagger3同样也是在声明DocketBean 中注入，如下：

@Bean
public Docket api() {
    return new Docket(DocumentationType.OAS_30)
            .apiInfo(apiInfo())
            .securitySchemes(Collections.singletonList(HttpAuthenticationScheme.JWT_BEARER_BUILDER
                    // 显示用
                    .name("JWT")
                    .build()))
            .securityContexts(Collections.singletonList(SecurityContext.builder()
                    .securityReferences(Collections.singletonList(SecurityReference.builder()
                            .scopes(new AuthorizationScope[0])
                            .reference("JWT")
                            .build()))
                    // 声明作用域
                    .operationSelector(o -> o.requestMappingPattern().matches("/.*"))
                    .build()))
            .select()
            .apis(RequestHandlerSelectors.any())
            .paths(PathSelectors.any())
            .build();
}

通过Swagger3中Docket提供的securitySchemes和securityReferences方法进行 JWT 的配置。

总结

Swagger3中设置JWT比Swagger2中要麻烦一些，能够简化我们的使用和开发使用即可。
